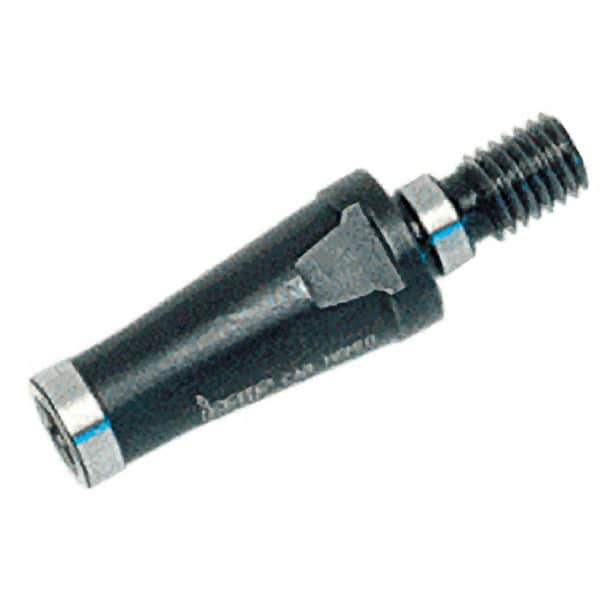

Iscar - Modular End Mill Reductions & Extensions Type: End Mill Extension Shank Type: Screw-On Connection
Item #: 79654422
Brand: Iscar
Model #: 3110754
Exact Tooling IR#: 04
Product Specifications
Modular End Mill Reductions & Extensions; Type: End Mill Extension ; Shank Type: Screw-On Connection ; Shank Connection Size: M16 ; Projection (Decimal Inch): 1.5750 ; Projection (mm): 40.01 ; Nose Diameter (mm): 29.01
| Type | End Mill Extension |
| Shank Type | Screw-On Connection |
| Shank Connection Size | M16 |
| Projection (Decimal Inch) | 1.5750 |
| Projection (mm) | 40.01 |
| Nose Diameter (mm) | 29.01 |
| Nose Diameter (Decimal Inch) | 1.1420 |
| Nose Hole Thread Size | M16 |
| Overall Length (mm) | 65.00 |
| Overall Length (Decimal Inch) | 2.5590 |
