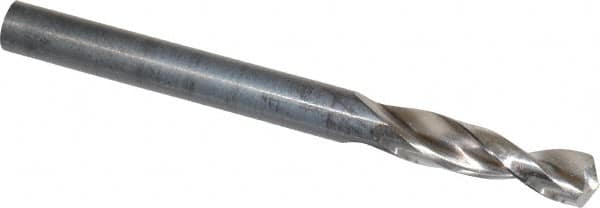

Jobber Length Drill Bit: 0.2087″ Dia, 130 °, High Speed Steel Bright/Uncoated, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 549
Item #: 85748523
Brand: Guhring
Model #: 9005490053000
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2087 |
| Drill Bit Size (mm) | 5.30 |
| Drill Bit Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Bright |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Parabolic |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Flute Length (Inch) | 2-3/64 |
| Shank Diameter (Decimal Inch) | 0.2087 |
| Overall Length (mm) | 86.00 |
| Overall Length (Inch) | 3-25/64 |
| Flute Length (mm) | 52.00 |
| Flute Length (Decimal Inch) | 2.0469 |
| Series | 549 |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (Decimal Inch) | 1.7340 |
| Maximum Drilling Depth (mm) | 44.05 |
| Shank Length (mm) | 34.00 |
| Drill Bit Diameter Tolerance | -0.018 to 0.000 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Standards | DIN 338 |
| Specification Number | DIN 338 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Drill Bit Size Range (mm) | 5.00 - 6.00 |
| Specification Designation | DIN |
