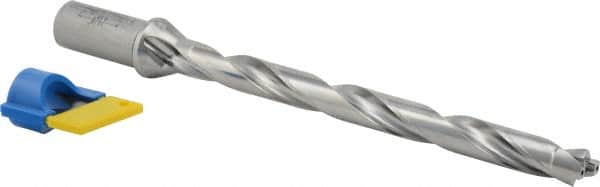

Iscar - 3/4" to 0.783" Diam, 12xD, 8.98" Max Depth, 1" Shank Diam, 12.36" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 19 Seat Size, 88278999 Toolholder, Series SumoCham
Item #: 88278999
Brand: Iscar
Model #: 3202835
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.7480 |
| Maximum Drill Diameter (Decimal Inch) | 0.7830 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (Decimal Inch) | 8.9800 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 19 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 10.1600 |
| Overall Length (Decimal Inch) | 12.3600 |
| Shank Length (Decimal Inch) | 2.2000 |
