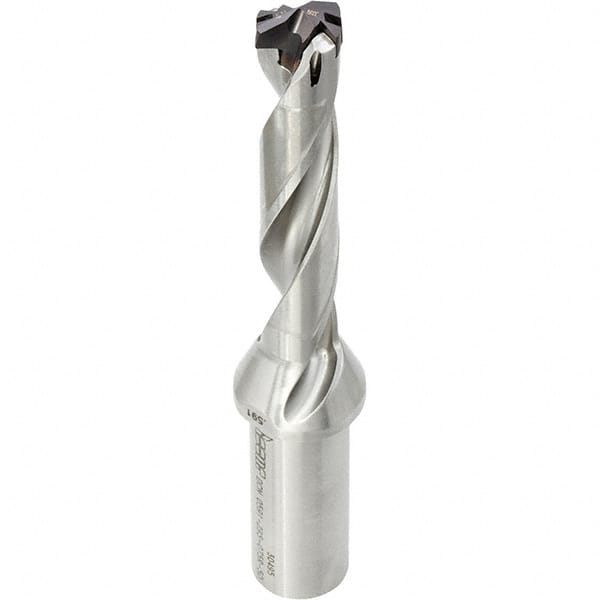

Iscar - 0.945" to 0.98" Diam, 5xD, 4.72" Max Depth, 1-1/4" Shank Diam, 8.58" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 24 Seat Size, 89204267 Toolholder, Series SumoCham
Item #: 89204267
Brand: Iscar
Model #: 3201743
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.9450 |
| Maximum Drill Diameter (Decimal Inch) | 0.9800 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 4.7200 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 24 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 6.2200 |
| Overall Length (Decimal Inch) | 8.5800 |
| Shank Length (Decimal Inch) | 2.3600 |
