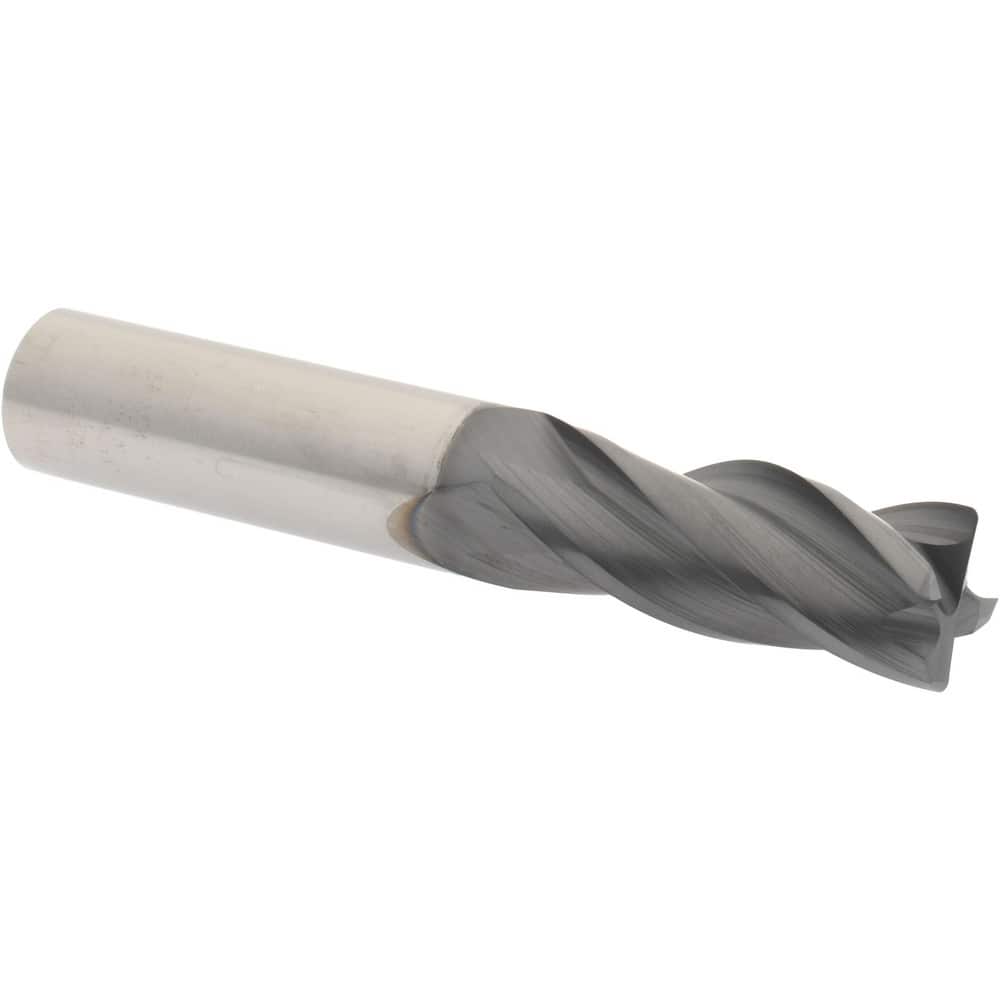

Corner Radius End Mill: 1/2″ Dia, 1-1/4″ LOC, 0.03″ Radius, 4 Flutes, Solid Carbide 3″ OAL, 1/2″ Shank Dia, Variable ° Helix, AlCrTiN Coated, Corner Radius End, Centercutting
Item #: 96900436
Brand: Accupro
Model #: 6504382
Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (mm) | 12.70 |
| Length of Cut (Inch) | 1-1/4 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Length of Cut (mm) | 31.75 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Regular |
| Flute Type | Helical |
| Helix Angle | Variable |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 0.5 |
| Shank Diameter (mm) | 12.7000 |
| Overall Length (Inch) | 3 |
| Overall Length (mm) | 76.20 |
| Overall Length (Decimal Inch) | 3.0000 |
| Minimum Helix Angle | 30.00 |
| Maximum Helix Angle | 32.00 |
| Mill Diameter Tolerance | +0.000000 to -0.025000 mm; +0.000000 to -0.001000 in |
| Shank Diameter Tolerance | h6 |
| Overall Length Tolerance | +0.0400 to -0.0000 in |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| TIR Maximum (Decimal Inch) | 0.0065 |
| TIR Maximum (mm) | 0.70 |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Coating/Finish | AlCrTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
 | |
| MSC Part # | 96900436 |
| Mfr Part # | 6504382 |
