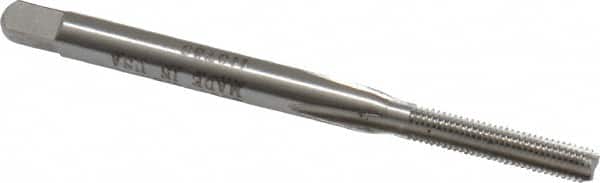

Heli-Coil - M2.2x0.45 Metric Coarse, D2, 3 Flute, Bottoming Chamfer, Bright Finish, High Speed Steel Hand STI Tap - 47.62mm OAL, 14.29mm Thread Length, 4.76mm Square Length, 2.79mm Square Size, 5H Class of Fit
Item #: 99005100
Brand: Heli-Coil
Model #: 2093-2.2
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes to the bottom. They have 1 to 2 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M2.2x0.45 |
| Class of Fit | 5H |
| Thread Limit | D2 |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Finish/Coating | Bright |
| Overall Length (mm) | 47.62 |
| Thread Standard | Metric Coarse |
| Thread Length (mm) | 14.29 |
| Shank Diameter (mm) | 3.58 |
| Square Length (mm) | 4.76 |
| Square Size (mm) | 2.79 |
| Material | High Speed Steel |
| Material Application | Aluminum; Magnesium; Mild Steel; Stainless Steel |
