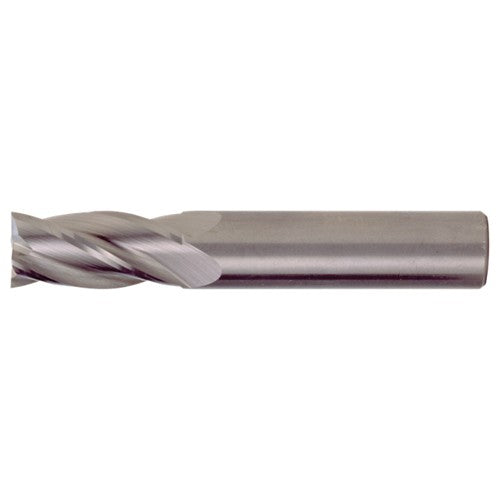

15/64″ × 1/4″ × 3/4″ × 2-1/2″ RHS / RHC Solid Carbide 4-Flute Square Nose Single End General Purpose End Mill - TiAlN
Item #: BA10B69117
Brand: Bassett
Model #: B69117
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 15/64″ |
| Tool Type | End Mill |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Length Group | Regular |
| Depth of Cut Maximum (APMX) | 3/4″ |
| Flute Type | Spiral |
| Overall Length (OAL) | 2-1/2″ |
| Decimal Equivalent | 0.2344″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | AlTiN |
| Series/List # | MSE-4-TA |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | CW |
| Single / Double End | Single End |
| Shank Type | Round |
| Center Cutting | Yes |
| End Shape | Square |
