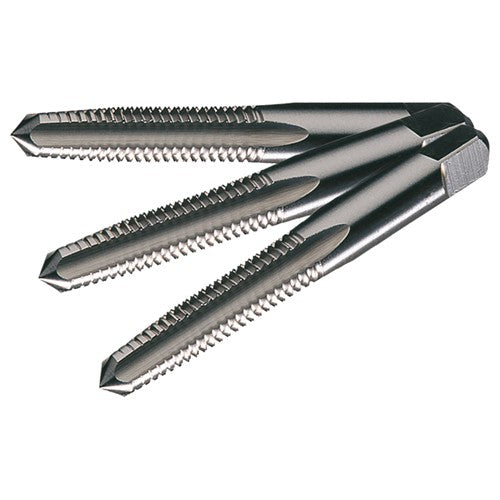

5/8-18 UNF Flute Carbon Steel Standard Taper, Plug, and Bottoming Hand Tap Set- Bright
Item #: CF71C69464
Brand: Cle-Force
Model #: C69464
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 5/8″ |
| Coating | Bright |
| Thread Standard | NF |
| Overall Length (OAL) | 3-13/16″ |
| Threads per Inch (TPI) | 18 |
| Connection Diameter Machine Side (DCONMS) | 0.48″ |
| Flute Type | Straight |
| Cutting Edge Material | Carbon Steel |
| Style | Taper|Plug|Bottoming |
| Quantity | 3 |
| Tool Type | Hand Tap |
| Measurement Type | Inch |
| Shank Type | Round w/ Drive Square |
| Series/List # | 1699 |
| Flute Length | 1-13/16″ |
| Thread Cutting Part Length (THL) | 1-13/16″ |
| Cutting Direction (HAND) | Right Hand |
| Thread Size | 5/8″ - 18 |
