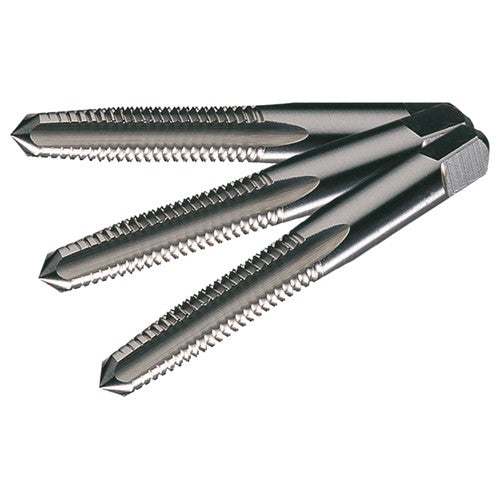

7/16-20 UNF 4 Flute HSS Standard Taper, Plug, and Bottoming Hand Tap Set- Bright
Item #: CL71C62060
Brand: Cle-Line
Model #: C62060
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 7/16″ |
| Coating | Bright |
| Thread Standard | NF |
| Overall Length (OAL) | 3-5/32″ |
| Threads per Inch (TPI) | 20 |
| Connection Diameter Machine Side (DCONMS) | 0.323″ |
| Flute Type | Straight |
| Flute Count (NOF) | 4 |
| Thread Tolerance Class (TCTR) | H3 |
| Cutting Edge Material | HSS |
| Style | Taper|Plug|Bottoming |
| Quantity | 3 |
| Tool Type | Hand Tap |
| Measurement Type | Inch |
| Shank Type | Round w/ Drive Square |
| Series/List # | 0404 |
| Flute Length | 1-7/16″ |
| Thread Cutting Part Length (THL) | 1-7/16″ |
| Cutting Direction (HAND) | Right Hand |
| Thread Size | 7/16″ - 20 |
