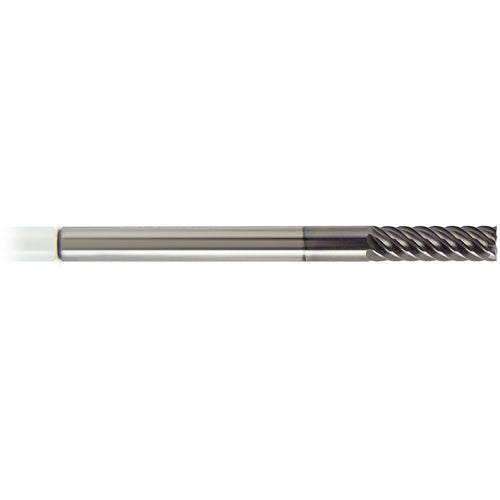

12245 1/4X1/4X3/4X2-1/2
Item #: CR1012245
Brand: Melin Tool Co
Model #: 12245
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/4″ |
| Flute Count (NOF) | 7 |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Usable Length (LU) | 3/4″ |
| Depth of Cut Maximum (APMX) | 1″ |
| Corner Radius (RE) | 0.015″ |
| Overall Length (OAL) | 2-1/2″ |
| Tool Type | High Performance |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.25″ |
| Coating | nACo |
| Series/List # | VXMG7 |
