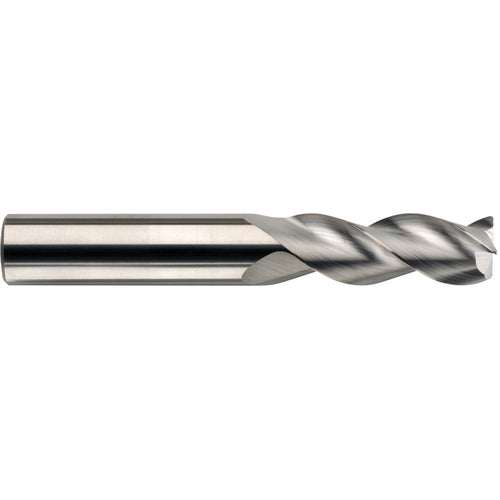

1″ End Mill 3FL .120R TB - S-CARB 1x1x3-1/4x6
Item #: DD9235742
Brand: KYOCERA SGS Precision Tools
Model #: 35742
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 3-1/4″ |
| Usable Length (LU) | 2-3/4″ |
| Overall Length (OAL) | 6″ |
| Corner Radius (RE) | 0.12″ |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TB |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Decimal Equivalent | 1″ |
| Flute Helix Angle (FHA) | 38 Degrees |
| Series/List # | S-CARB |
