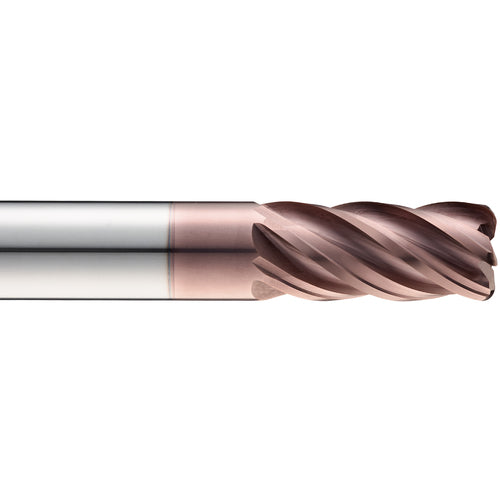

8.0 End Mill 5FL 0.50R - Z-CARB HPR 8x8x18x63
Item #: DD9247121
Brand: KYOCERA SGS Precision Tools
Model #: 47121
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 8 mm |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 18 mm |
| Usable Length (LU) | 45 mm |
| Overall Length (OAL) | 63 mm |
| Corner Radius (RE) | 0.5 mm |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | AlTiN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 |
| Decimal Equivalent | 0.315″ |
| Flute Helix Angle (FHA) | 37 Degrees |
| Series/List # | Z-CARB HPR |
