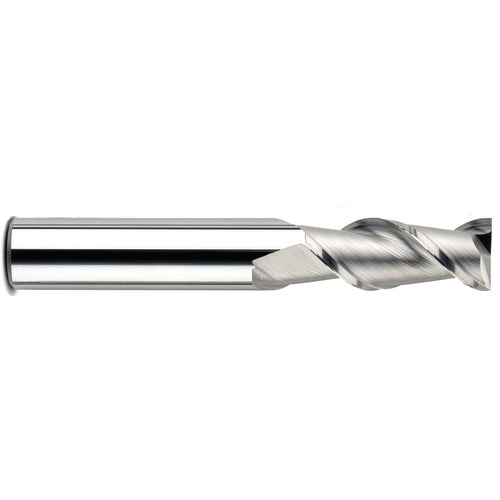

8.0 End Mill 2FL SQ TB - SKI-CARB 8x10x19x67
Item #: DD9249678
Brand: KYOCERA SGS Precision Tools
Model #: 49678
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 8 mm |
| Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| End Shape | Square |
| Depth of Cut Maximum (APMX) | 19 mm |
| Usable Length (LU) | 50 mm |
| Overall Length (OAL) | 69 mm |
| Corner Radius (RE) | None |
| Cutting Edge Material | Carbide |
| Flute Type | Spiral |
| Coating | TB |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Decimal Equivalent | 0.315″ |
| Flute Helix Angle (FHA) | 45 Degrees |
| Measurement Type | Metric |
