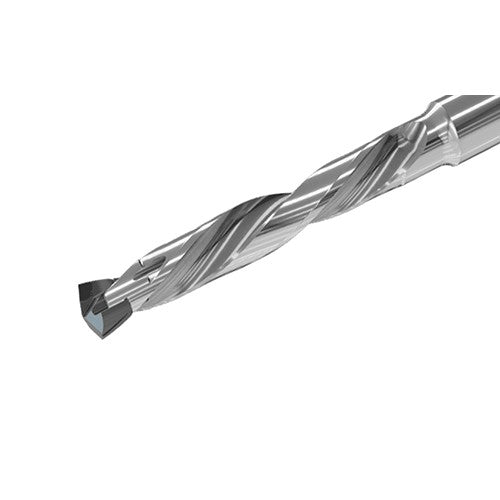

DCN 0177-090-0236C-5D
Item #: EH233346596
Brand: Iscar
Model #: 3346596
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.177″ |
| Overall Length (OAL) | 2.703″ |
| Usable Length (LU) | 0.9118″ |
| Shank Length (LS) | 1.38″ |
| Length Group | 5D |
| Coolant Supply Property (CSP) | Through Hole |
| Shank Type | Round |
| Measurement Type | Inch |
| Application | | Drilling | |
| Master Insert Identification (MIID) | ICP 045 |
| Connection Diameter Machine Side (DCONMS) | 0.236″ |
| Point Length (PL) | 0.02598″ |
| Insert Seat Size Code (SSC) | 4.5 |
| Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.177″ |
| Decimal Equivalent | 0.177″ |
| Cutting Diameter Maximum (DCX) | 0.193″ |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Protruding Length (LPR) | 1.364″ |
