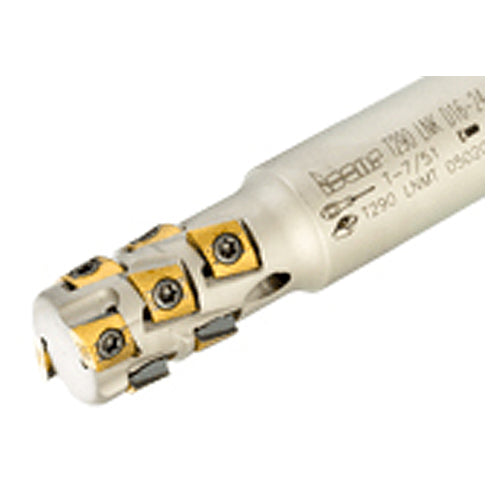

T290 LNK D16-24-02-C16-05
Item #: EH3105108
Brand: Iscar
Model #: 3105108
| Product Specifications | |
|---|---|
| Application | | Shouldering | |
| Cutting Depth | 31 mm |
| Cutting Item Count (CICT) | 10 |
| Master Insert Identification (MIID) | T290 LNHT 050202TR |
| Depth of Cut Maximum (APMX) | 24 mm |
| Coolant Supply Property (CSP) | Through Hole |
| Cutting Diameter (DC) | 16 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Measurement Type | Metric |
| Flute Count (NOF) | 2 |
| Body Material | Steel |
| Overall Length (OAL) | 80 mm |
| Tool Type | 90° Extended flute endmills |
| Cutting Length | 24 mm |
| Connection Code Machine Side (CCMS) | Cylindrical |
