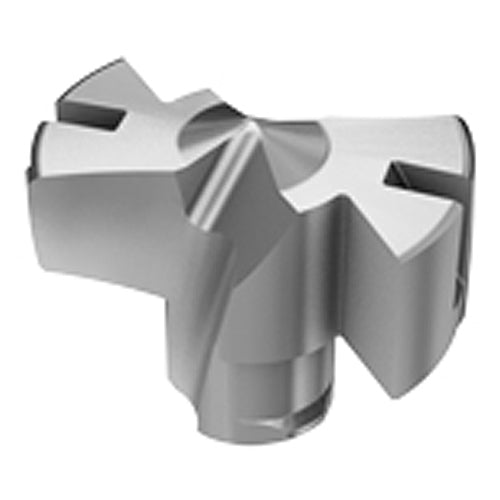

FCP 0524 IC908
Item #: EH5500854
Brand: Iscar
Model #: 5500854
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.524″ |
| Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Insert Thickness (S) | 0.201″ |
| Application | | Chamfering | Drilling | Gundrill | |
| Point Length (PL) | 0.05039″ |
| Grade | IC908 |
| Point Angle (SIG) | 140 Degrees |
| Tool Type | Drilling Heads |
| Coating | TiAlN |
| Protruding Length (LPR) | 0.224″ |
| Pilot Drill Diameter (PDD) | 0.139″ |
| Insert Seat Size Code (SSC) | 13.0 |
| Corner Chamfer Width (CHW) | 0.016″ |
| Functional Length (LF) | 0.173″ |
| Chamfer Angle | 60 Degrees |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
