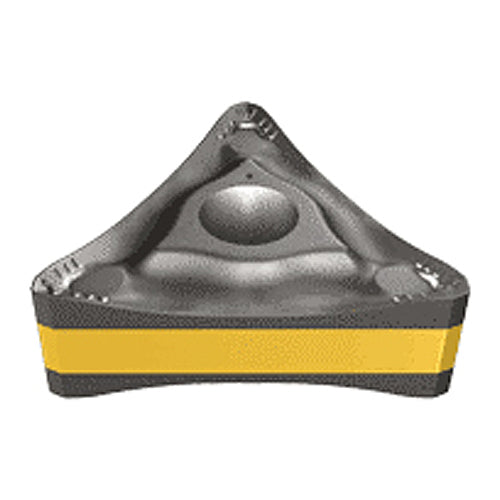

TNMX 341-M3PW IC830
Item #: EH553328848
Brand: Iscar
Model #: 3328848
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Grade | IC830 |
| Application | | Ext. 60° Triangle 91° Approach | Insert | |
| Tool Type | Turn Negative Inserts |
| Insert Style | TNMX |
| Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 0.0157″ |
| Min D.O.C. | 0.079″ |
| Insert Size | 341 |
| Depth of Cut Maximum (APMX) | 0.197″ |
| Cutting Edge Length (L) | 0.65″ |
| Min. Turning Feed (ft(min)) | 0.0098 ″/rev |
| Insert Thickness (S) | 0.173″ |
| Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Chip Breaker Type | HTW |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | AlTiN+TiN |
| Body Material | Carbide |
