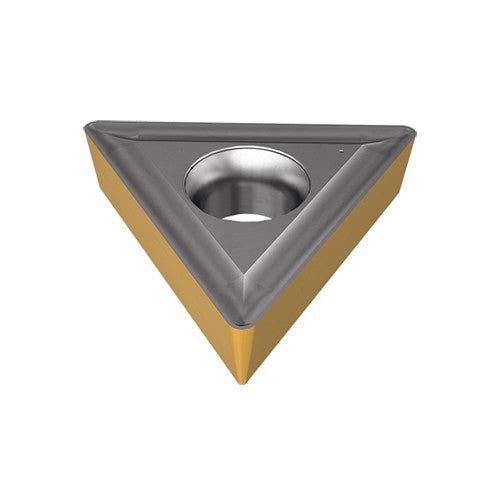

TCMT 2-1-19 IC428
Item #: EH5591663
Brand: Iscar
Model #: 5591663
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Cast Iron | Hard Materials | |
| Tool Type | Turn Positive Inserts |
| Application | | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle Facing | Insert | Int. 60° Triangle 90° Approach | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | |
| Fixing Hole Diameter (D1) | 0.11″ |
| Insert Style | TCMT |
| Min D.O.C. | 0.02″ |
| Corner Radius (RE) | 0.0157″ |
| Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Size | 2-1 |
| Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 0.433″ |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.094″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Chip Breaker Type | 19 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiC+Al2O3 |
| Shape | 60° Triangle |
| Grade | IC428 |
| Body Material | Carbide |
