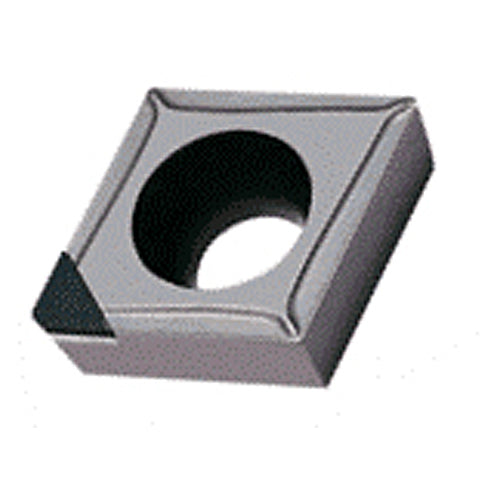

CCGW 03X102T01015-1 IB05H
Item #: EH576888225
Brand: Iscar
Model #: 6888225
| Product Specifications | |
|---|---|
| Applicable Material | | Hard Materials | |
| Tool Type | Turn Ultra hard Inserts |
| Application | | Ext. 80° Diamond 93° Approach | Ext. 80° Diamond 95° Approach | Insert | Int. 80° Diamond 95° Approach | Int. 80°Diamond 90° Approach | Int. Back Turning 80° Diamond | Int. Chamfering 80° Diamond | |
| Fixing Hole Diameter (D1) | 0.075″ |
| Insert Style | CCGW |
| Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.0079″ |
| Depth of Cut Maximum (APMX) | 0.02″ |
| Insert Size | 03X102 |
| Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.143″ |
| Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Thickness (S) | 0.055″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 0.141″ |
| Measurement Type | Inch |
| Cutting Edge Material | PCBN |
| Body Material | Carbide |
| Grade | IB05H |
