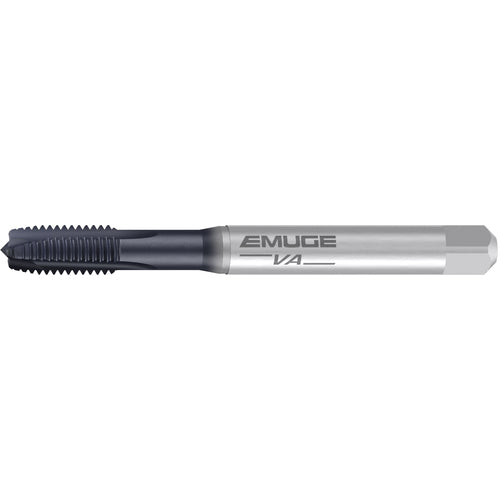

1-3/8-12-TAP-REKB-VA-GLT1
Item #: ER4520C3005055
Brand: EMUGE-FRANKEN
Model #: CU20C300.5055
| Product Specifications | |
|---|---|
| Thread Standard | UNF |
| Tool Type | Rekord B-VA |
| Thread Diameter Size (TDZ) | 1-3/8″ |
| Applicable Material | Steel | Stainless Steel |
| Threads per Inch (TPI) | 12 |
| Connection Diameter Machine Side (DCONMS) | 1.108″ |
| Thread Tolerance Class (TCTR) | 2B |
| Flute Helix Angle (FHA) | 0 Degrees |
| Overall Length (OAL) | 6.693″ |
| Style | Spiral Point |
| Chamfer | 4P-5P |
| Cutting Direction (HAND) | Right Hand |
| Coating | GLT-1 |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSS-E |
| Series/List # | U20C300 |
| Standard | DIN | ANSI |
