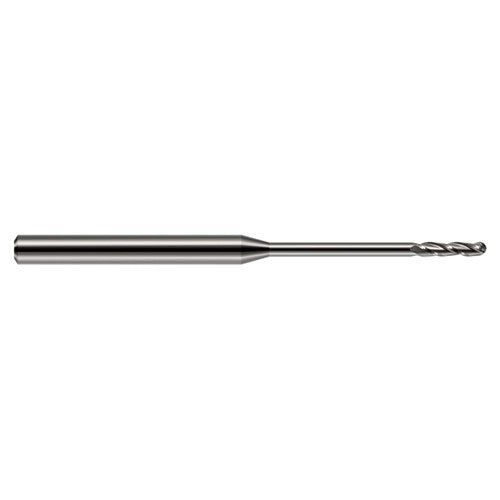

0.07″ Dia. × 1/8″ Shank × 1/2″ DOC × 2-1/2″ OAL, Carbide Uncoated, Long , 3 Flute, Ballnose End Mill
Item #: GE9013870
Brand: Harvey Tool
Model #: 13870
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.07″ |
| Usable Length (LU) | 1″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Length Group | Long Reach |
| Depth of Cut Maximum (APMX) | 1/2″ |
| End Shape | Ball Nose |
| Overall Length (OAL) | 2-1/2″ |
| Flute Type | Long |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.07″ |
| Coating | Uncoated |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
