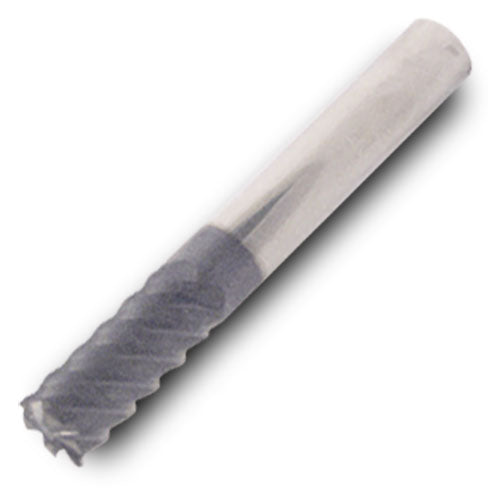

48J01225T2RJ830 IN2006
Item #: IC045621841
Brand: Ingersoll
Model #: 5621841
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Application | Shouldering | Slotting |
| Depth of Cut Maximum (APMX) | 25 mm |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 83 mm |
| Grade | IN2006 |
| Coating | TiAlN |
| Body Material | Steel |
| Flute Count (NOF) | 6 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 50 Degrees |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| End Shape | Square |
