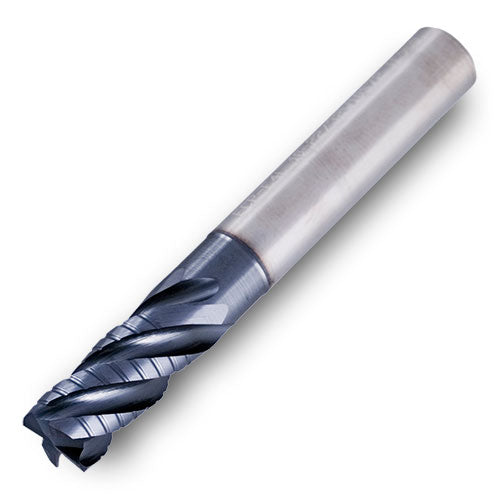

47C01430WFRM05 IN2005
Item #: IC045622219
Brand: Ingersoll
Model #: 5622219
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 14 mm |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 14 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Depth of Cut Maximum (APMX) | 30 mm |
| Application | Shouldering | Slotting |
| Overall Length (OAL) | 100 mm |
| Grade | IN2005 |
| Coating | TiAlN |
| Body Material | Steel |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 38 Degrees |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
