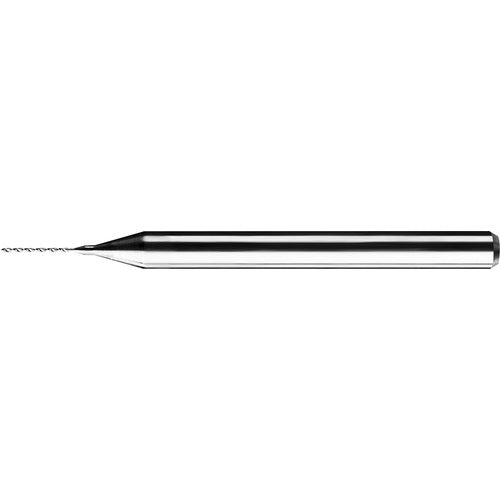

3 mm Dia. × 3 mm Shank × 36 mm Flute Length × 60 mm OAL, Extended, 130°, AlTiN, 2 Flute, Straight / Cylindrical Solid Carbide Drill
Item #: KY878507029
Brand: KYOCERA SGS Precision Tools
Model #: 07721
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 3 mm |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1181″ |
| Flute Type | Spiral |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3 mm |
| Point Shape | 4 Facet |
| Length Group | Extended |
| Measurement Type | Metric |
| Coating | TiAlN |
| Series/List # | 226 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials |
| Length Chip Flute (LCF) | 36 mm |
| Application | Micro Drilling |
| Overall Length (OAL) | 60 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Flute Count (NOF) | 2 |
| Point Angle (SIG) | 130 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Cylindrical |
