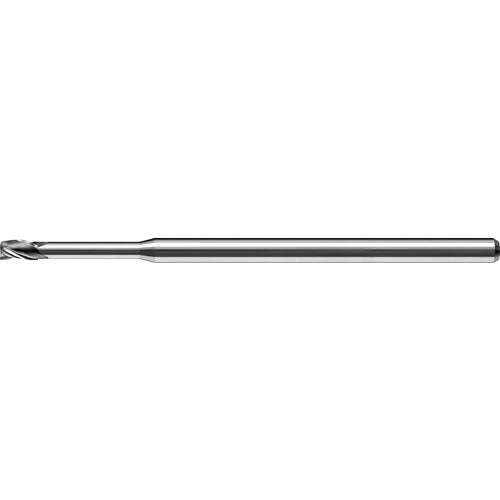

0.0400 3FL UNCOATED SQ EM ALT MFG #1742-0400.800
Item #: KY878515605
Brand: KYOCERA SGS Precision Tools
Model #: 09646
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.04″ |
| Applicable Material | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Application | Roughing | Finishing |
| Depth of Cut Maximum (APMX) | 0.8″ |
| Neck Diameter (DN) | 0.0375″ |
| Overall Length (OAL) | 2-1/2″ |
| Neck Length (LN) | 0.8″ |
| Cutting Edge Material | Sub Micron Grain Carbide |
| Length Group | Extended Reach, Stub |
| Coating | Uncoated |
| Flute Type | Right Hand Spiral / Medium Helix |
| Flute Count (NOF) | 3 |
| Style | Micro with Neck Relief | Center Cutting |
| Flute Helix Angle (FHA) | 30 Degrees |
| Decimal Equivalent | 0.04″ |
| Shank Type | Straight | Cylindrical |
| Measurement Type | Inch |
| Usable Length (LU) | 0.06″ |
| Series/List # | 1742 |
