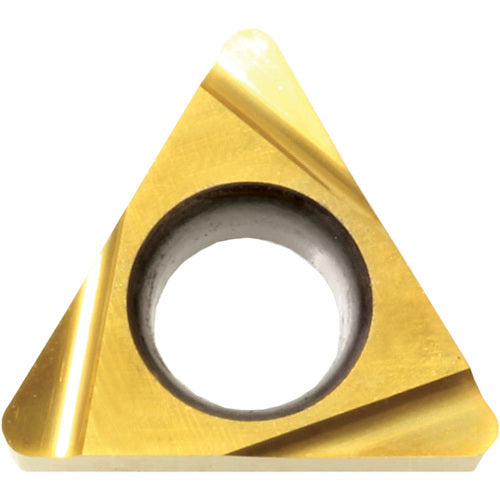

TBGT 12105L PV720 INSERT
Item #: KY918843174
Brand: Kyocera Precision Tools
Model #: TLD05504
| Product Specifications | |
|---|---|
| Applicable Material | Steel |
| Coating | TiCN (MEGACOAT NANO) |
| Application | Boring | Internal Facing | Copying | Back Boring |
| Grade | PV720 |
| Insert Style | TBGT |
| Fixing Hole Diameter (D1) | 0.0906″ |
| Corner Radius (RE) | 0.0079″ |
| Clearance Angle Major (AN) | 5 Degrees |
| Insert Size | 12105 |
| Number of Cutting Edges | 3 |
| Insert Thickness (S) | 1/16″ |
| Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 5/32″ |
| Shape | Triangle |
| Cutting Edge Material | Cermet |
