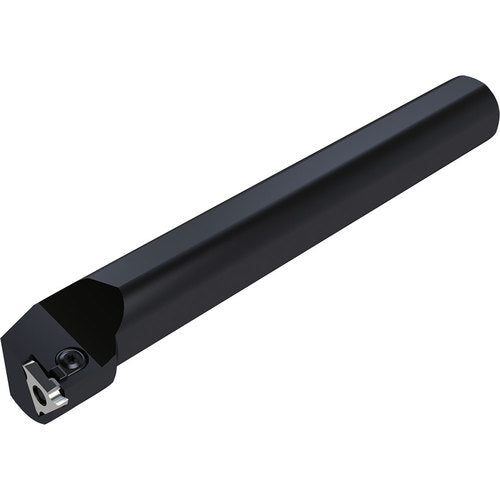

KIGBAL 403222 INT GROOVE
Item #: KY968809730
Brand: Kyocera Precision Tools
Model #: THC07282
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 0.79 mm |
| Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 4.8 mm |
| Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 5 mm |
| Application | Large Diameter Shallow Grooving |
| Shank Height (H) | 30 mm |
| Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 40 mm |
| Series/List # | KIGBA |
| Head Length (LH) | 30 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 250 mm |
| Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
