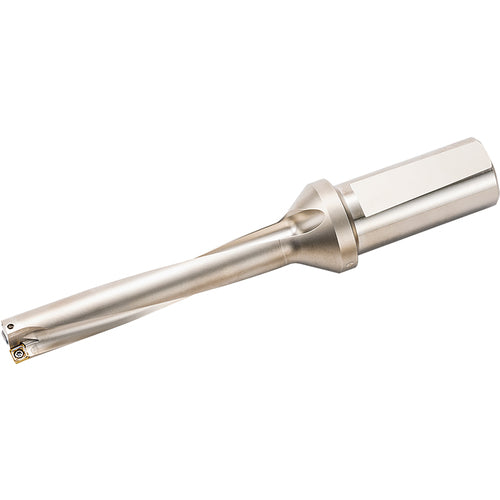

S150DRV1500611, DRV Magic Drill 1.5000″ Cutting Diameter, 6xD, Indexable Insert Drill
Item #: KY96THD11872
Brand: Kyocera Precision Tools
Model #: THD11872
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1-1/2″ |
| Cutting Diameter Minimum (DCN) | 1-1/2″ |
| Usable Length (LU) | 9″ |
| Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Application | Drilling |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Length Group | 6D |
| Shank Type | Weldon |
| Master Insert Identification (MIID) | SCMT110406--E | SCMT110410--I |
| Overall Length (OAL) | 12.7559″ |
| Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru |
| Decimal Equivalent | 1.5″ |
| Cutting Direction (HAND) | Right Hand |
| Model Number | 8862937 |
| Cutting Item Count (CICT) | 2 |
