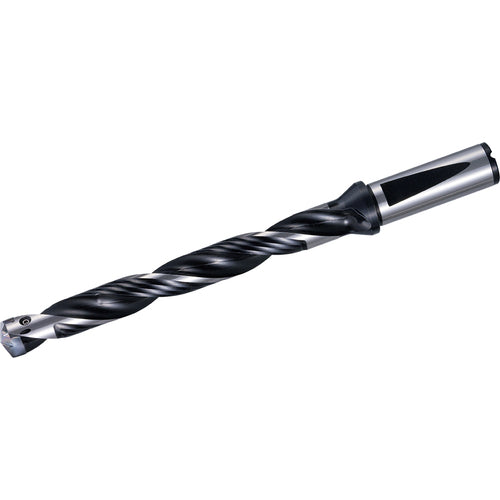

SF32DRA320M8, DRA Magic Drill 32.00-33.00mm Cutting Diameter, 8xD, Replaceable Tip Drill
Item #: KY96THD12069
Brand: Kyocera Precision Tools
Model #: THD12069
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 32 mm - 33 mm |
| Overall Length (OAL) | 365 mm |
| Usable Length (LU) | 264 mm |
| Shank Length (LS) | 58 mm |
| Length Group | 8D |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Flange |
| Cutting Direction (HAND) | Right Hand |
| Application | Drilling |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Style | SS DRA |
| Insert Seat Size Code (SSC) | 320 |
| Master Insert Identification (MIID) | DA3200M- ~ DA3300M- |
| Cutting Diameter Minimum (DCN) | 32 mm |
| Series/List # | DRA |
| Cutting Diameter Maximum (DCX) | 33 mm |
| Body Material | Steel |
