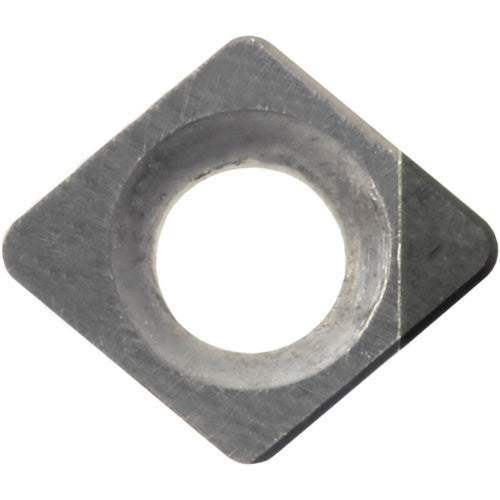

CCMW 141105 SE KBN510, 0.0079″ Corner Radius, 0.0709″ Thick, 0.1693″ Inscribed Circle, Diamond, Turning Indexable Insert
Item #: KY998820600
Brand: Kyocera Precision Tools
Model #: TBV01285
| Product Specifications | |
|---|---|
| Applicable Material | Hard Steel |
| Grade | KBN510 |
| Application | External Turning | Facing | Boring | Internal Facing |
| Fixing Hole Diameter (D1) | 0.0906″ |
| Insert Style | CCMW |
| Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.0079″ |
| Number of Cutting Edges | 1 |
| Insert Size | 141105 |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.0709″ |
| Chip Breaker Type | SE |
| Inscribed Circle Diameter (IC) | 0.1693″ |
| Shape | Diamond |
| Cutting Edge Material | CBN |
