STAWK1210TG DP5010
Item #: MB01647322
Brand: Mitsubishi Materials USA
Model #: 647322

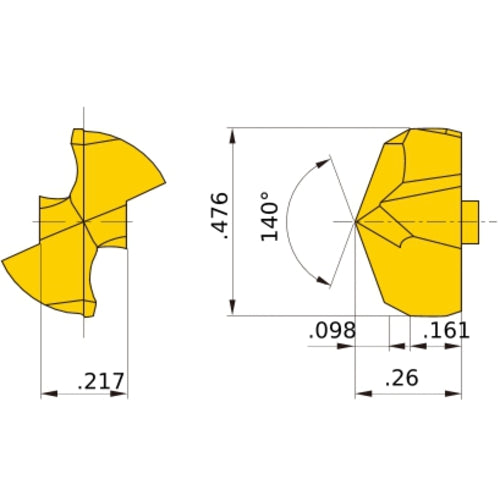

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12.1 mm |
| Insert Thickness (S) | 5.5 mm |
| Applicable Material | Cast Iron |
| Overall Length (OAL) | 6.8 mm |
| Grade | DP5010 |
| Point Length (PL) | 2.7 mm |
| Functional Length (LF) | 4.1 mm |
| Point Angle (SIG) | 140 Degrees |
| Cutting Edge Material | Carbide |
| Series/List # | DP5010 |
| Measurement Type | Metric |
