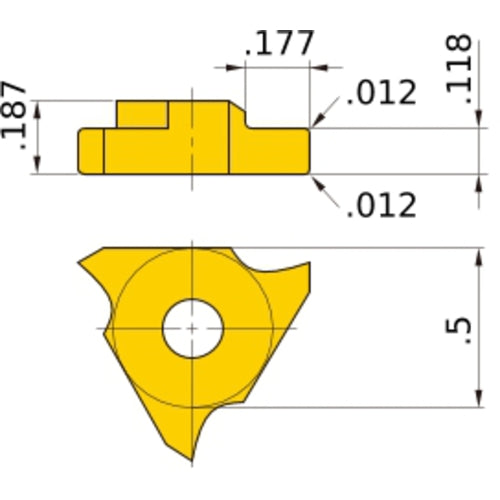

MGTL43300 VP20MF INSERT
Item #: MB02372218
Brand: Mitsubishi Materials USA
Model #: 372218
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 3 mm |
| Grade | VP20MF |
| Corner Radius (RE) | 0.3 mm |
| Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 4.5 mm |
| Applicable Material | Steel | Stainless Steel |
| Insert Thickness (S) | 4.76 mm |
| Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 12.7 mm |
| Series/List # | VP20MF |
| Fixing Hole Diameter (D1) | 5.16 mm |
| Measurement Type | Metric |
