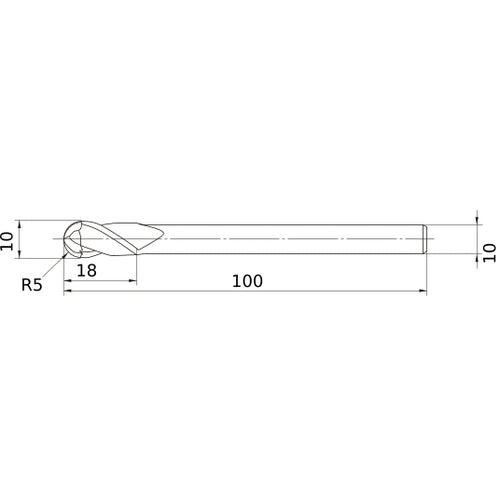

VFR2SBR0500
Item #: MB0310568149
Brand: Mitsubishi Materials USA
Model #: 10568149
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| Flute Helix Angle (FHA) | 20 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Corner Radius (RE) | 5 mm |
| Depth of Cut Maximum (APMX) | 18 mm |
| Length Group | Short |
| Overall Length (OAL) | 100 mm |
| End Shape | Ball Nose |
| Coating | VFR |
| Measurement Type | Metric |
| Flute Count (NOF) | 2 |
| Series/List # | VFR2SB |
