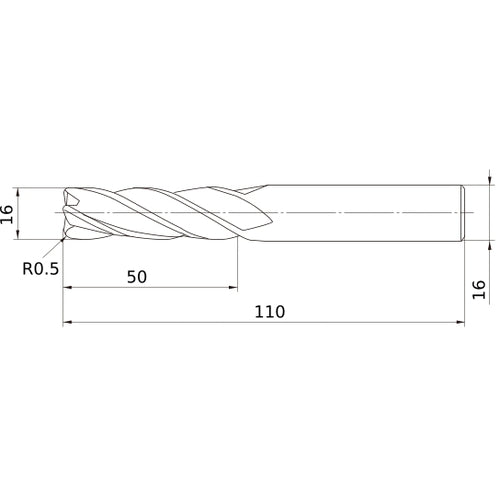

VC4JRBD1600R0050
Item #: MB03376059
Brand: Mitsubishi Materials USA
Model #: 376059
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Corner Radius (RE) | 0.5 mm |
| Depth of Cut Maximum (APMX) | 50 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Overall Length (OAL) | 110 mm |
| Length Group | Semi Long |
| Coating | VC |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Series/List # | VC4JRB |
| Flute Helix Angle (FHA) | 30 Degrees |
