C2MHAD1600
Item #: MB03421850
Brand: Mitsubishi Materials USA
Model #: 421850

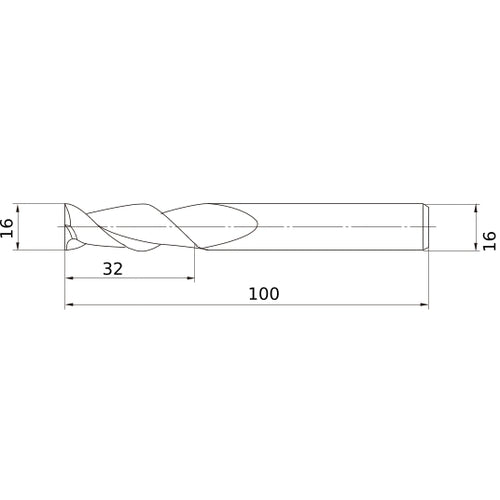

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| End Shape | Center Cutting |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 |
| Depth of Cut Maximum (APMX) | 32 mm |
| Length Group | Medium |
| Overall Length (OAL) | 100 mm |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 55 Degrees |
| Series/List # | C2MHA |
