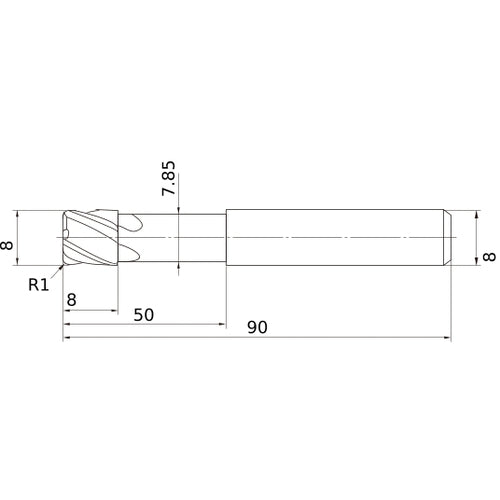

VCPSRBD0800N50R10
Item #: MB03422895
Brand: Mitsubishi Materials USA
Model #: 422895
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 8 mm |
| Usable Length (LU) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Corner Radius (RE) | 1 mm |
| Depth of Cut Maximum (APMX) | 8 mm |
| Neck Diameter (DN) | 7.85 mm |
| Overall Length (OAL) | 90 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Coating | VC |
| Length Group | Short |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Metric |
| End Shape | Corner Radius |
| Series/List # | VCPSRB |
