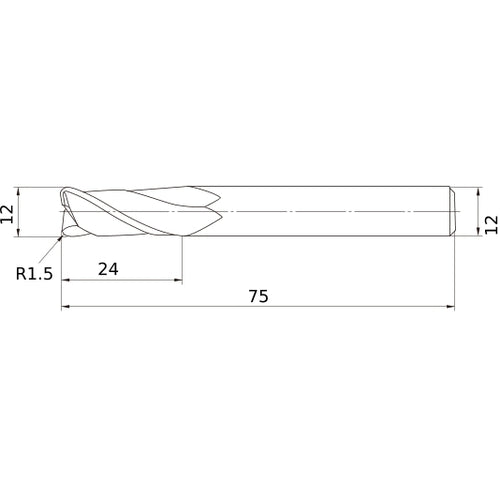

MS2MRBD1200R150
Item #: MB03425412
Brand: Mitsubishi Materials USA
Model #: 425412
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Corner Radius (RE) | 1.5 mm |
| Depth of Cut Maximum (APMX) | 24 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 |
| Overall Length (OAL) | 75 mm |
| Length Group | Medium |
| Coating | MS |
| Measurement Type | Metric |
| Flute Count (NOF) | 2 |
| Series/List # | MS2MRB |
| Flute Helix Angle (FHA) | 30 Degrees |
