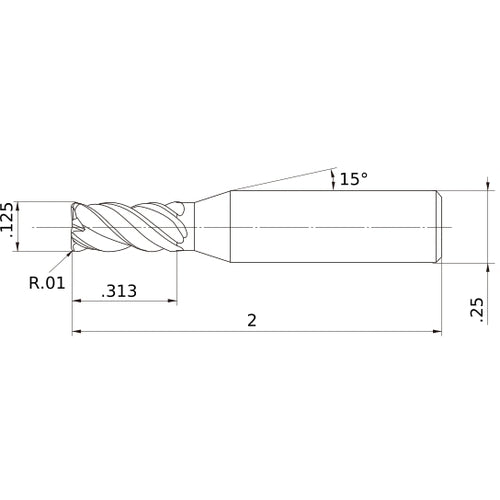

VQMHVRBD1/8R010 CARBIDE ENDMILL
Item #: MB03614029
Brand: Mitsubishi Materials USA
Model #: 614029
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/8″ |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Depth of Cut Maximum (APMX) | 0.313″ |
| Length Group | Medium |
| Overall Length (OAL) | 2″ |
| Decimal Equivalent | 0.125″ |
| Coating | VQ |
| Measurement Type | Inch |
| End Shape | Corner Radius |
| Series/List # | VQMHVRB_INCH |
| Corner Radius (RE) | 0.01″ |
