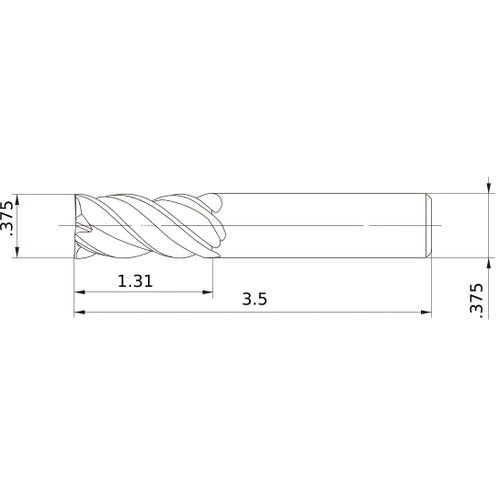

VQJHVD3/8 CARBIDE ENDMILL
Item #: MB03690961
Brand: Mitsubishi Materials USA
Model #: 690961
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/8″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
| Length Group | Semi Long |
| Depth of Cut Maximum (APMX) | 1.31″ |
| Decimal Equivalent | 0.375″ |
| Overall Length (OAL) | 3-1/2″ |
| Measurement Type | Inch |
| Coating | VQ |
| Series/List # | VQJHV_INCH |
| End Shape | Center Cutting |
