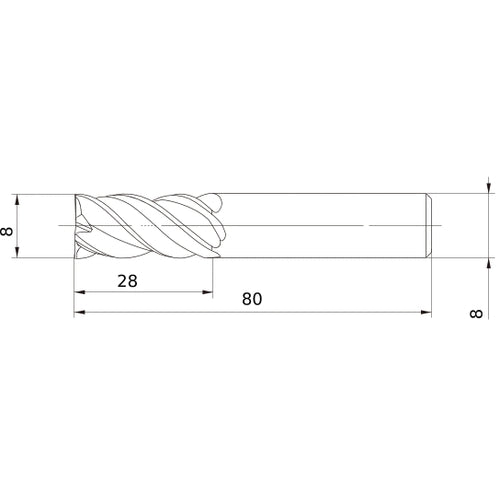

VQJHVD0800 CARBIDE ENDMILL
Item #: MB03691075
Brand: Mitsubishi Materials USA
Model #: 691075
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 8 mm |
| End Shape | Center Cutting |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Depth of Cut Maximum (APMX) | 28 mm |
| Length Group | Semi Long |
| Overall Length (OAL) | 80 mm |
| Measurement Type | Metric |
| Coating | VQ |
| Series/List # | VQJHV |
