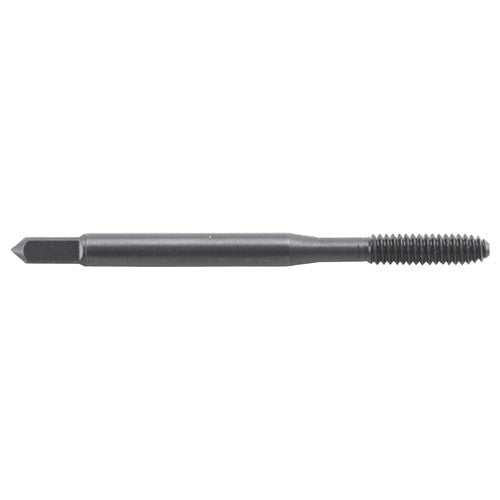

18-1.5; Bottoming; D10; Viper T Roll Form Tap
Item #: NT1051062
Brand: Nachi America Inc
Model #: 51062
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Chamfer | 1.5P |
| Thread Diameter Size (TDZ) | M18 |
| Special Feature | High Performance |
| Thread Pitch (TP) | 1.5 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 102.3938 mm |
| Flute Type | Fluteless |
| Thread Cutting Part Length (THL) | 27.9908 mm |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 13.7668 mm |
| Cutting Edge Material | HSSE-V |
| Flute Count (NOF) | 0 |
| Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | D10 |
| Product_Description | Viper T Roll Form Tap |
| Coating | Black Oxide |
| Thread Size | M18 × 1.5 |
| Helix Angle | CW |
