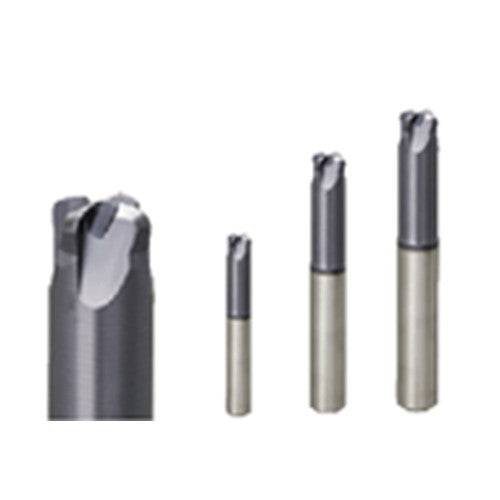

TEFF160N4-055/42C16R26M AH750
Item #: TG435622473
Brand: Tungaloy
Model #: 5622473
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| Application | | Face Milling | High Feed Milling | Profile Milling | Shoulder Milling | |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Corner Radius (RE) | 2.6 mm |
| Depth of Cut Maximum (APMX) | 0.8 mm |
| Grade | AH750 |
| Overall Length (OAL) | 92 mm |
| Head Length (LH) | 42 mm |
| Cutting Edge Material | Carbide |
| Neck Length (LN) | 42 mm |
| Coating | TiAlN |
| Maximum Feed per Tooth (fz(max)) | 0.6 mm/tooth |
| Flute Count (NOF) | 4 |
| Body Material | Carbide |
| Shank Type | Round |
| Measurement Type | Metric |
| End Shape | Corner Radius |
