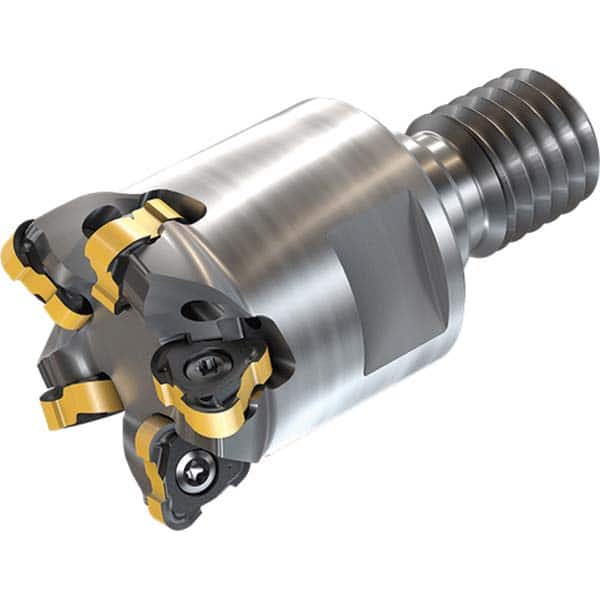

Iscar - Indexable Copy End Mills Cutting Diameter (mm): 18 Cutting Diameter (Inch): 0.7080
Item #: 15821655
Brand: Iscar
Model #: 3320737
Product Specifications
Indexable Copy End Mills; Cutting Diameter (mm): 18 ; Cutting Diameter (Inch): 0.7080 ; Cutting Diameter (Decimal Inch): 0.7080 ; Maximum Depth of Cut (mm): 2.50 ; Maximum Depth of Cut (Decimal Inch): 0.0980 ; Shank Type: Threaded
| Cutting Diameter (mm) | 18 |
| Cutting Diameter (Inch) | 0.7080 |
| Cutting Diameter (Decimal Inch) | 0.7080 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Shank Type | Threaded |
| Modular Connection Thread Size | M16 |
| Shank Diameter (mm) | 29.0000 |
| Shank Diameter (Inch) | 1.1410 |
| Shank Diameter (Decimal Inch) | 1.1410 |
| Number of Cutter Inserts | 5 |
| Insert Style | TR |
| Toolholder Style | TR6 |
| Series | TOR6MILL |
| Overall Length (mm) | 60.0000 |
| Overall Length (Decimal Inch) | 2.36200 |
| Toolholder Material | Steel |
| Through Coolant | Coolant Through |
| Weldon Flat | No |
| Number of Flutes | 5 |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3770 |
| Shank Length (mm) | 60.000 |
| Shank Length (Decimal Inch) | 2.3620 |
| Maximum Cutting Diameter (Decimal Inch) | 1.3770 |
