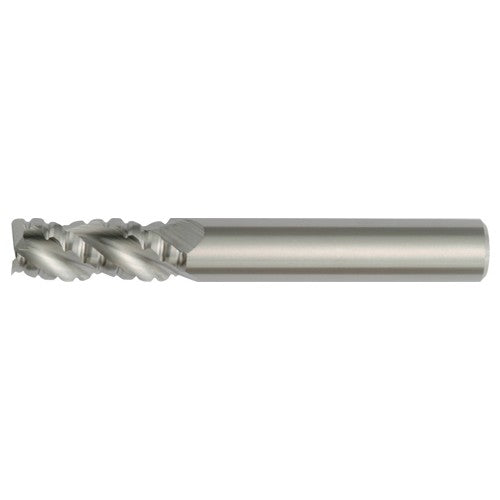

SC RUF 3FL 3/4X3/4X1.1/2X4
Item #: WK402843025
Brand: Widia
Model #: 2843025
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Usable Length (LU) | 1-1/2″ |
| Depth of Cut Maximum (APMX) | 1-1/2″ |
| Corner Chamfer Width (CHW) | 0.04″ |
| Overall Length (OAL) | 4″ |
| Grade | TICN-CW |
| Cutting Edge Material | Carbide |
| Flute Type | For Aluminum |
| Coating | TiCN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 |
| Style | 82-02 SEM Side and Center |
| Flute Helix Angle (FHA) | CW|30 Degrees |
| Decimal Equivalent | 0.75″ |
| Shank Type | Weldon |
