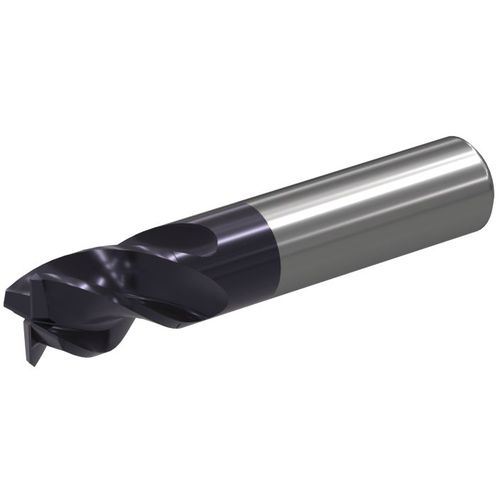

7/16X7/16X5/8X2-1/2 C.020
Item #: WK406945720
Brand: Widia
Model #: 6945720
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 7/16″ |
| Grade | WU20PE |
| Connection Diameter Machine Side (DCONMS) | 7/16″ |
| Tool Type | Solid Carbide Endmill |
| Depth of Cut Maximum (APMX) | 5/8″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2-1/2″ |
| Body Material | Carbide |
| Cutting Edge Material | Carbide |
| Style | Finishing |
| Coating | AlTiN |
| Decimal Equivalent | 0.4375″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees |
| Series/List # | W401 |
| Shank Type | Straight | Cylindrical |
| Shank Length (LS) | 1.5827″ |
| End Shape | Chamfer |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Single / Double End | Single End |
| Corner Radius (RE) | 0.02″ |
| Center Cutting | Yes |
| Corner Chamfer Width (CHW) | 0.02″ |
