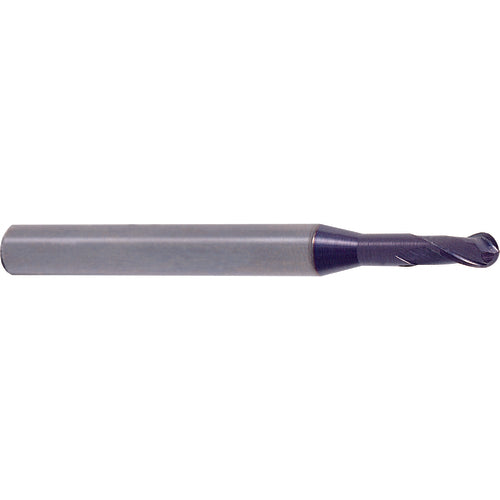

1/32 × 1/8 × 3/64(5/16) × 2″ X-Power 2Fl Rib Ball Nose End Mill
Item #: YG31967901
Brand: YG-1 Cutting Tools
Model #: GM967901
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/16″ |
| Usable Length (LU) | 5/16″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ |
| Applicable Material | Steel |
| Depth of Cut Maximum (APMX) | 3/32″ |
| Tool Type | Ballnose Endmill |
| Overall Length (OAL) | 2″ |
| Length Group | Rib Processing |
| Cutting Edge Material | Carbide |
| End Shape | Ball Nose |
| Coating | Y-Coating |
| Decimal Equivalent | 0.0625″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | GM967 |
| Shank Type | Plain |
