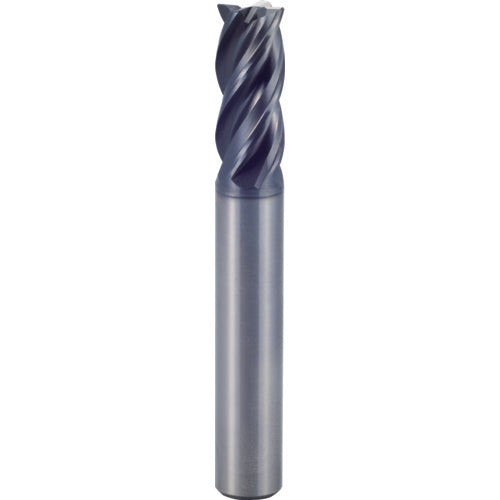

14 × 14 × 26 × 83 mm 4 Flute 1mm C/R Carbide End Mill-Plain Shank - Y-Coating
Item #: YG33GMF58910
Brand: YG-1 Cutting Tools
Model #: GMF58910
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 14 mm |
| Shank Type | Plain |
| Connection Diameter Machine Side (DCONMS) | 14 mm |
| End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 26 mm |
| Applicable Material | Stainless Steel | Cast Iron | Super-Alloys / Titanium |
| Overall Length (OAL) | 83 mm |
| Corner Radius (RE) | 1 mm |
| Cutting Edge Material | Carbide |
| Tool Type | 4 Flute Standard Length |
| Coating | Y-Coating |
| Decimal Equivalent | 0.5512″ |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 36 Degrees |
| Series/List # | GMF58 |
