HARD JAWS - 1/16" x 90° Serrations

HARD JAWS-2 STEP
1/16" x 90° Serrations
FEATURES:
  • Designed for first operation roughing, expect standard runout between 0.005-0.010
  • Reversible-suitable for OD & ID workholding.
  • XTRA BITE -very aggressive bite. Has conical teeth for extra gripping power and ground body to provide improved runout.
Prices are pulled from our database in real time. Press Add button to see product price.

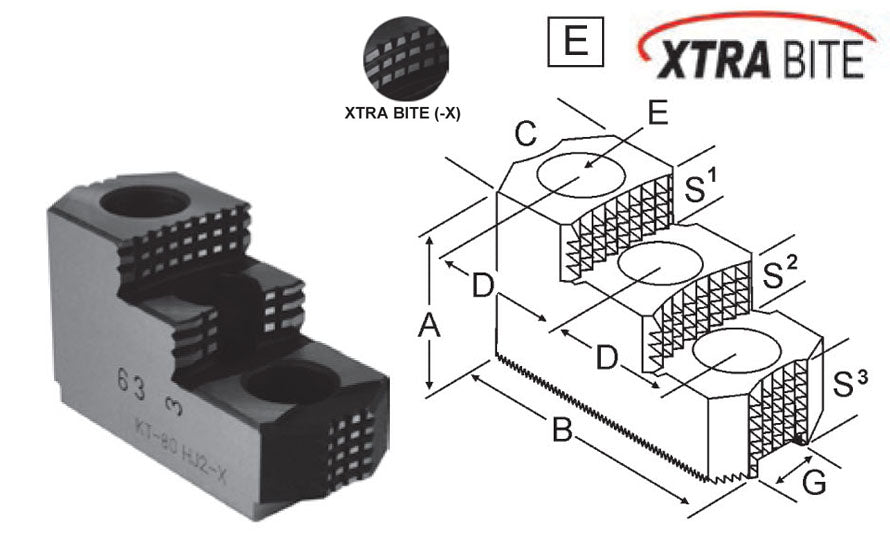

Critical Dimensions
Group
Number		 Chuck Size Groove Width
G		 Screw Size
E		 Hole
Space
D		 Width Inch
C		 OAL Inch
B		 Height Inch
A		 No.
of
Holes		 No.
of
Steps		 Top
Step Ht
S1		 Mid
Step Ht
S2		 Bot
Step Ht
S3		 Part
Number
I1-43-71 6 0.433 (11mm) 5/16 0.719 (18.5mm) 1.250 3.000 2.000 3 2 0.500 0.500 1.000 PH-60HJ2-X
I1-55-87 6 0.551 (14mm) 3/8 0.875 (22mm) 1.250 3.000 2.000 3 2 0.375 0.375 1.250 PH-61HJ2-X
I1-66-94 8 0.669 (17mm) 1/2 0.945 (24mm) 1.500 3.500 1.969 3 2 0.530 0.530 0.909 PH-80HJ2-X
