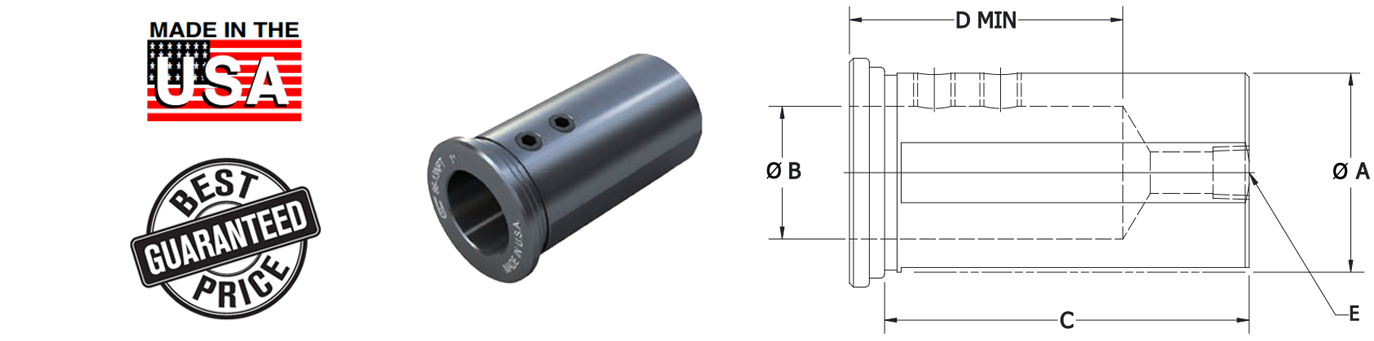

NPT Boring Bar Sleeve

NPT Boring Bar Sleeve
These New NPT Threaded Boring Bar Sleeves have a threaded back end to allow for the inducing Internal Coolant Applications.
OD ID Part Number Price
A C D (Min) E B
1" 2-3/4" 2-1/16" 1/8-27 NPT 1/4" 86-11NPT 1/4"
$215.00
5/16" 86-11NPT 5/16"
3/8" 86-11NPT 3/8"
1/2" 86-11NPT 1/2"
5/8" 86-11NPT 5/8"
3/4" 86-11NPT 3/4"
1-1/4" 2-3/8" 2-1/16" 1/8-27 NPT 3/8" 86-12NPT 3/8"
$220.00
1/2" 86-12NPT 1/2"
5/8" 86-12NPT 5/8"
3/4" 86-12NPT 3/4"
7/8" 86-12NPT 7/8"
1" 86-12NPT 1"
1-1/2" 2-3/4" 2-1/16" 1/8-27 NPT 3/8" 86-13NPT 3/8"
$225.00
1/2" 86-13NPT 1/2"
5/8" 86-13NPT 5/8"
3/4" 86-13NPT 3/4"
7/8" 86-13NPT 7/8"
1" 86-13NPT 1"
1-1/4" 86-13NPT 1-1/4"
1-3/4" 3" 2-1/16" 1/8-27 NPT 1/2" 86-14NPT 1/2"
$230.00
5/8" 86-14NPT 5/8"
3/4" 86-14NPT 3/4"
7/8" 86-14NPT 7/8"
1" 86-14NPT 1"
1-1/4" 86-14NPT 1-1/4"
2" 3-1/2" 2-1/16" 1/4-18 NPT 1/2" 86-15NPT 1/2"
$235.00
5/8" 86-15NPT 5/8"
3/4" 86-15NPT 3/4"
7/8" 86-15NPT 7/8"
1" 86-15NPT 1"
1-1/4" 86-15NPT 1-1/4"
1-1/2" 86-15NPT 1-1/2"
