Type G Bushings

TYPE G BUSHINGS
For Gang Tools
  • 3/4" Long head helps equalize the tool length compared to collet chuck and OD tool holders.
  • Set screw helps preset the tools flat on the bushing for ease of clamping
  • Ground concentric
Buy All 7 And Save 10% From Individual Prices

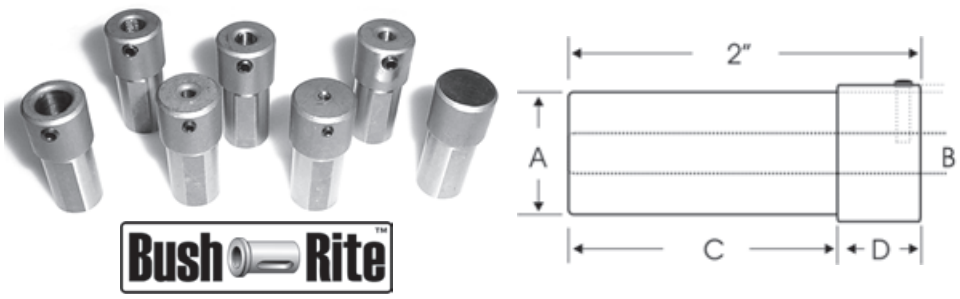

A
O.D.
C
Length Under Head
D Head Thickness Clearance Groove Head Dia. Nominal B
ID
Part Number Price Each Screw Size
Part Stop/ Plug
3/4" 1-1/4" 3/4" 0.04 7/8" - TBG-07-PLUG-B
$28.08 -
Bushings
3/4" 1-1/4" 3/4" 0.04 7/8" 1/8" TBG-07-0125-B
$33.65 6-40 x 3/8
3/16" TBG-07-0187-B
6-40 x 3/8
1/4" TBG-07-0250-B
1/4 x 5/16
5/16" TBG-07-0312-B
1/4 x 5/16
3/8" TBG-07-0375-B
1/4 x 5/16
1/2" TBG-07-0500-B
1/4 x 3/16
